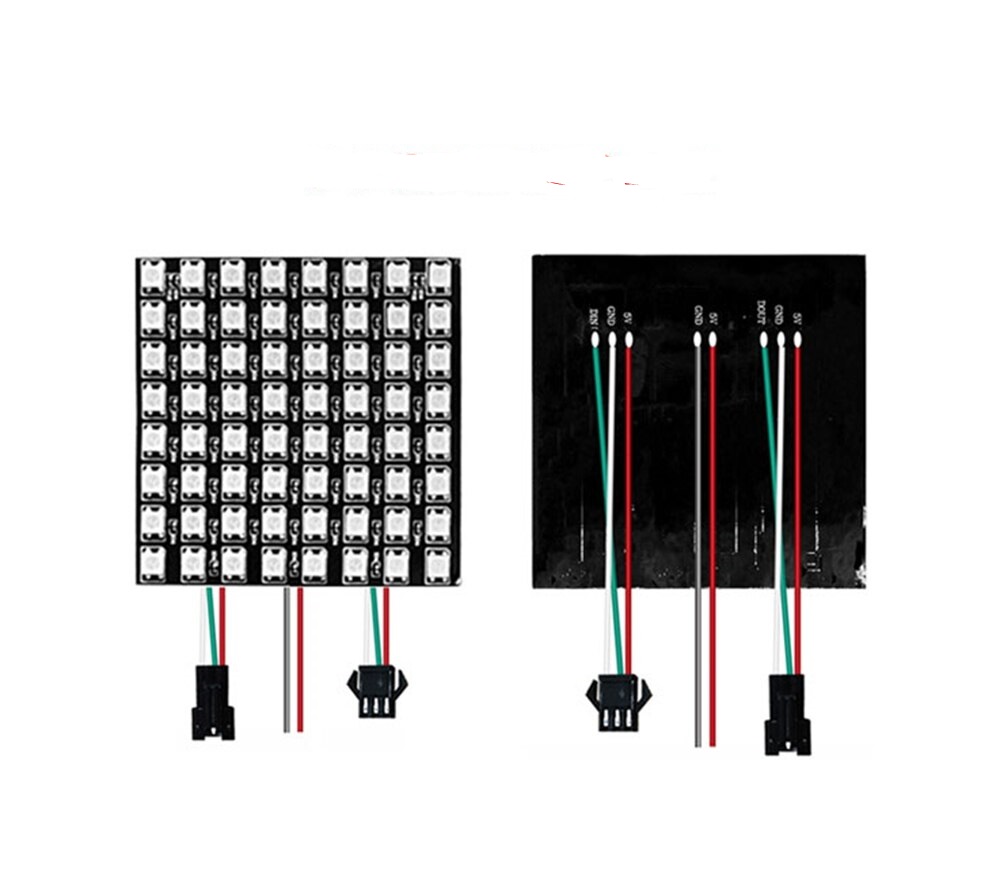

8X8 Screen Product Description:
voltage: DC 5V
FPCB colors: black
Light source: SMD 5050 RGB
Working Life: >50,000 hours
Beam Angle: 120 °
LED Quantity: 16*16 8*32 256 Pixels/8*8 64Pixels
Power: 64LEDs 19.2W/ 256LEDs 75W
Emitting Color: Full color (24-bit)
Gray level: 64/256
Plate: soft copper
Waterproof: IP30 non- waterproof
Working temperature:-20°C~40°C
IC: WS2812B (WS2811 IC built-in RGB chip)
Precautionsp:
1.With 256 LEDs, you could use over 15A of current if you turn on all the LEDs on to white (which we really do not recommend because we don’t think the flex PCB can handle that much current).
2.Using voltage 5V DC. higher than 5V DC will destroy it.
3.Do not bend strip sharply. Flexible PCBs are not designed for repeated flexing!
4.If you need better led strip performance, you can use a K-1000C controller or another programmable controller.
Features：
1.Individually Addressable
Using a programmable controller and you can program every led just you like. Every one led has its own IC chip.one IC controll one led.The chip buil in led.
2.DIY
If you have a programmable controller , you can DIY your own special effects
3.Bright
Brightness can be adjusted freely.Do not stare at it for a long time, otherwise you will be dazzled when the led Brightness is the brightest.
4.Colorful
Red ,Green, Blue .Dream full color. curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software
